如何在Figma中使用切片工具

学习如何使用 Figma 中的切片工具导出设计的特定部分。为设计师提供逐步指南，以加快资产创建。

逐步指南：如何在 Figma 中使用切片工具

步骤 1

首先，导航到 Figma 的格式化菜单并点击区域工具选项。

To begin, navigate to the formatting menu in Figma and click on the regional tools option.

步骤 2

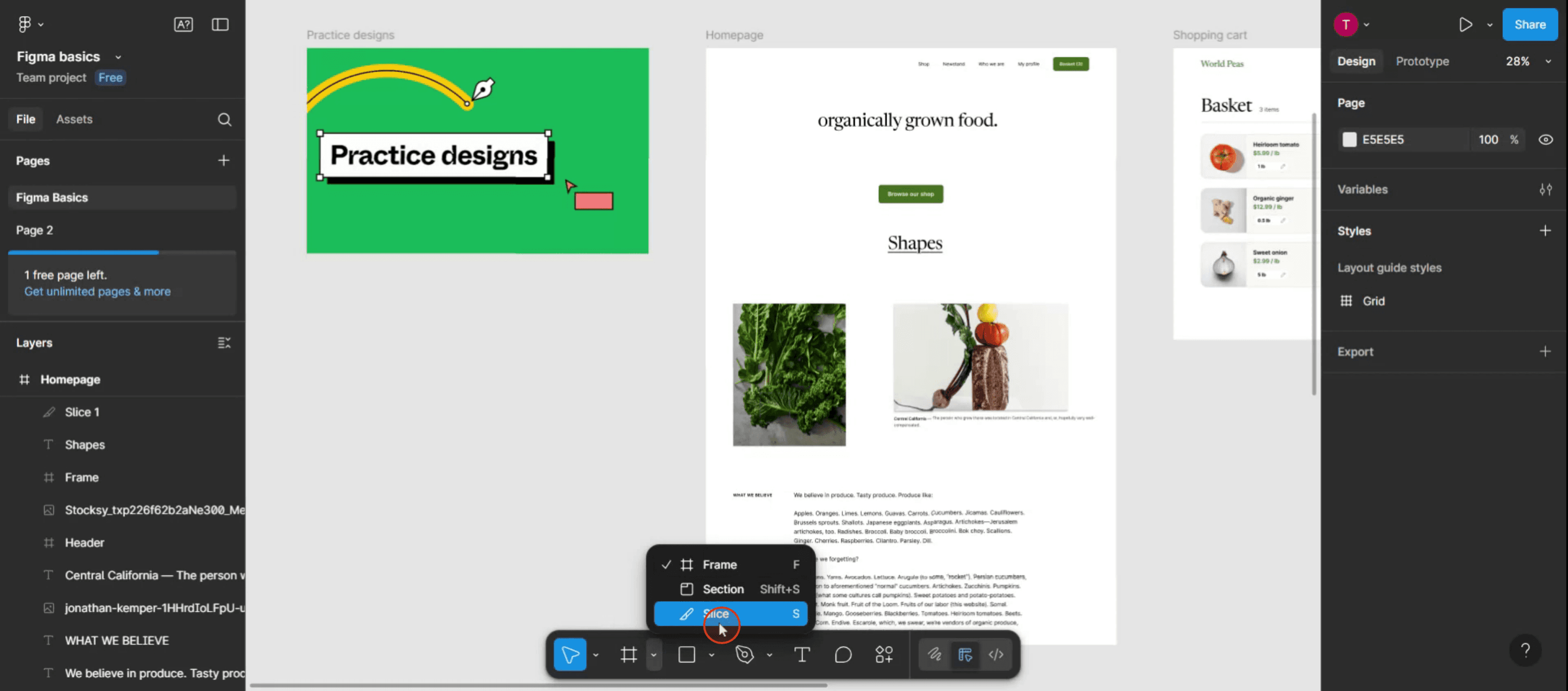

从可用选项中选择切片选项以激活该工具。

From the available options, select the slice option to activate the tool.

步骤 3

使用鼠标选择您想要切片的对象。

Using your mouse, select the object you want to slice.

步骤 4

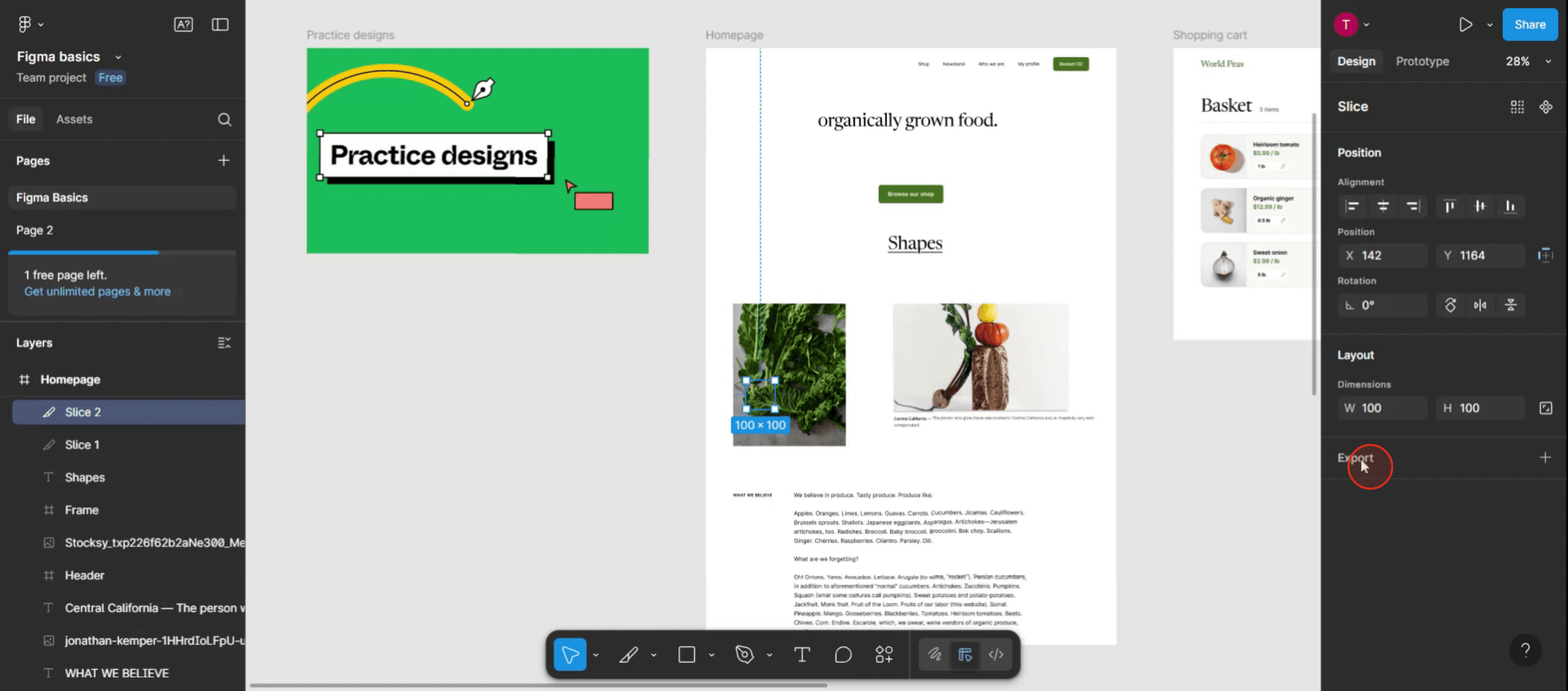

点击导出选项以继续。

Click on the export option to proceed further.

步骤 5

您将被提示导出切片的选项。

You will be presented with an option to export the slice.

使用 Figma 中的切片工具的专业技巧

  1. 使用快捷键快速激活
    按下键盘上的 S 键，可以瞬间激活切片工具，而无需通过菜单进行导航。

  2. 清晰命名您的切片
    在导出之前，在图层面板中为每个切片提供一个描述性名称。这有助于保持导出文件的组织。

  3. 使用切片进行批量导出
    在设计的不同部分放置多个切片，然后一次性导出它们，以加快资产创建速度。

  4. 对齐切片到像素网格
    为了确保导出的清晰度，确保您的切片边界对齐到整数像素。使用像素网格（Ctrl + ‘ / Cmd + ‘）检查对齐。

  5. 与导出预设结合使用
    为您的切片设置导出预设（例如，PNG @2x、JPG），以便您可以在无需每次调整的情况下重新使用设置。

常见问题和避免方法

  1. 不必要地对整个屏幕使用切片
    您不需要切片来导出整个框架—直接在框架上使用导出选项以节省时间。

  2. 切片边界不对齐
    如果切片偏离像素网格，导出可能会模糊。在导出之前，请始终检查网格对齐。

  3. 忘记选择切片图层
    尝试在未选择切片图层的情况下导出将不起作用。请确保切片在图层面板中被突出显示。

  4. 意外重叠切片
    重叠可能导致重复或混淆的导出。除非故意，否则请保持切片分开。

  5. 导出时未检查背景
    切片精确捕捉其下方的内容。如果背景不是选择的一部分，导出的文件可能不完整。

关于使用 Figma 切片工具的常见问答

  1. 切片工具用于什么？
    它允许您在设计中定义特定的导出区域，而不会影响布局。适合导出图标、按钮或自定义部分。

  2. 创建切片后可以调整其大小吗？
    可以，切片可以像形状一样编辑。拖动角落或在属性面板中调整尺寸。

  3. 切片会影响设计吗？
    不会，它们只是导出标记，不会出现在最终设计中。

  4. 可以一次导出多个切片吗？
    可以，在图层面板中选择多个切片并一起导出。

  5. Figma 的浏览器版本支持切片吗？
    是的，您可以在 Figma 的桌面和浏览器版本中创建和导出切片。
